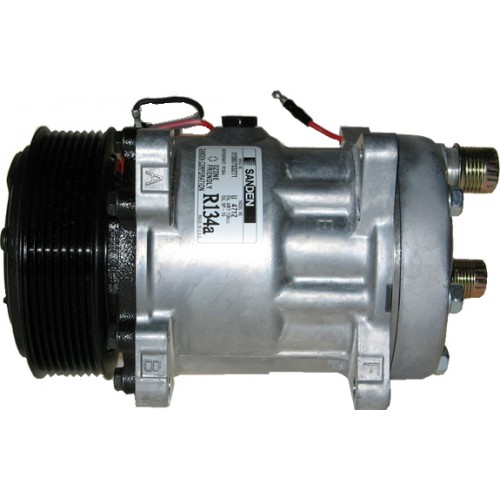

Oto Kompresor Sanden SD7H15 4712
- - Marka: Sanden
- - Ürün Kodu: SD7H15-4647
- - Stok Durumu: Stokta var
$265,00 + KDV
Orjinal Sanden USA SD7H15 4712 HD tip
PV8 kasnak 119mm
12volt
HOR (arkadan, oring yatay çıkış, 3/4" x 7/8")
EAR ( kullak tip montaj)
İş makinesi ve ağır iş şartlarına çalışmaya uygun;
uzun ömürlü,
Dayanıklı kompresor
Made in USA
| Compressor Family: | SD7H15 |
|---|---|
| Style: | HD |
| Mount Type: | Ear 8 Long |
| Ear ID: | 83.3 |
| Refrigerant: | R134A |
| Displacement: | 155.00 |
| Rotation Direction: | CW |
| Oil Qty (cc): | 135 |
| Cylinder Head: | KG |
| Port Angle: | H |
| Port Clocking: | Rear |
| Head Port Style: | 3/4X7/8 |
| Rotor Size: | 119 |
| Rotor Groove: | PV8 |
| Gauge Line to First Groove: | 21.63 |
| Gauge Line to Middle Groove: | 34.09 |
| Gauge Line to End Groove: | 46.55 |
| Coil Voltage: | 12 |
| Connector: | 1 Wire Male Bulle |
